ALUMINUM FISHING SHIPS. FOR FREE TIME AND ENTERTAINMENT

Read more Contact us References

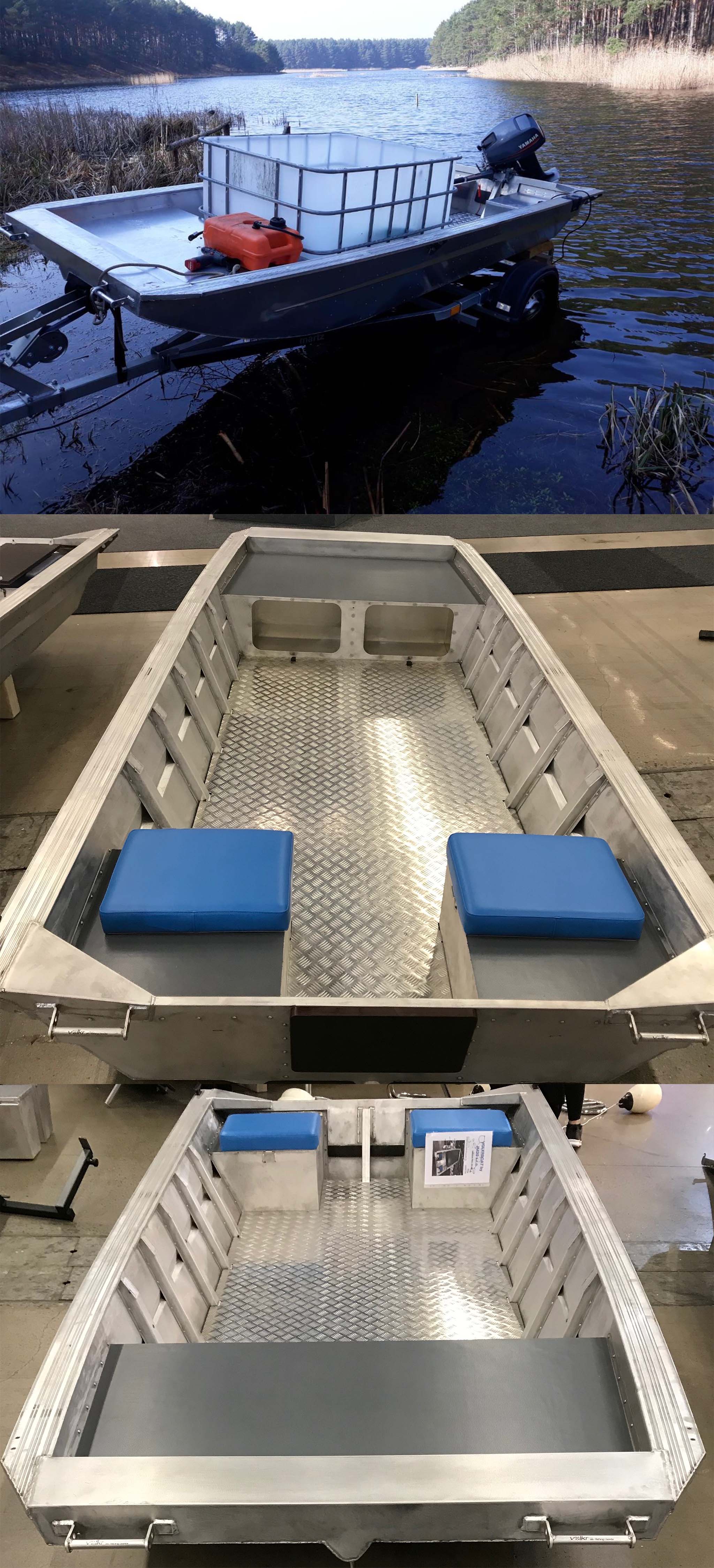

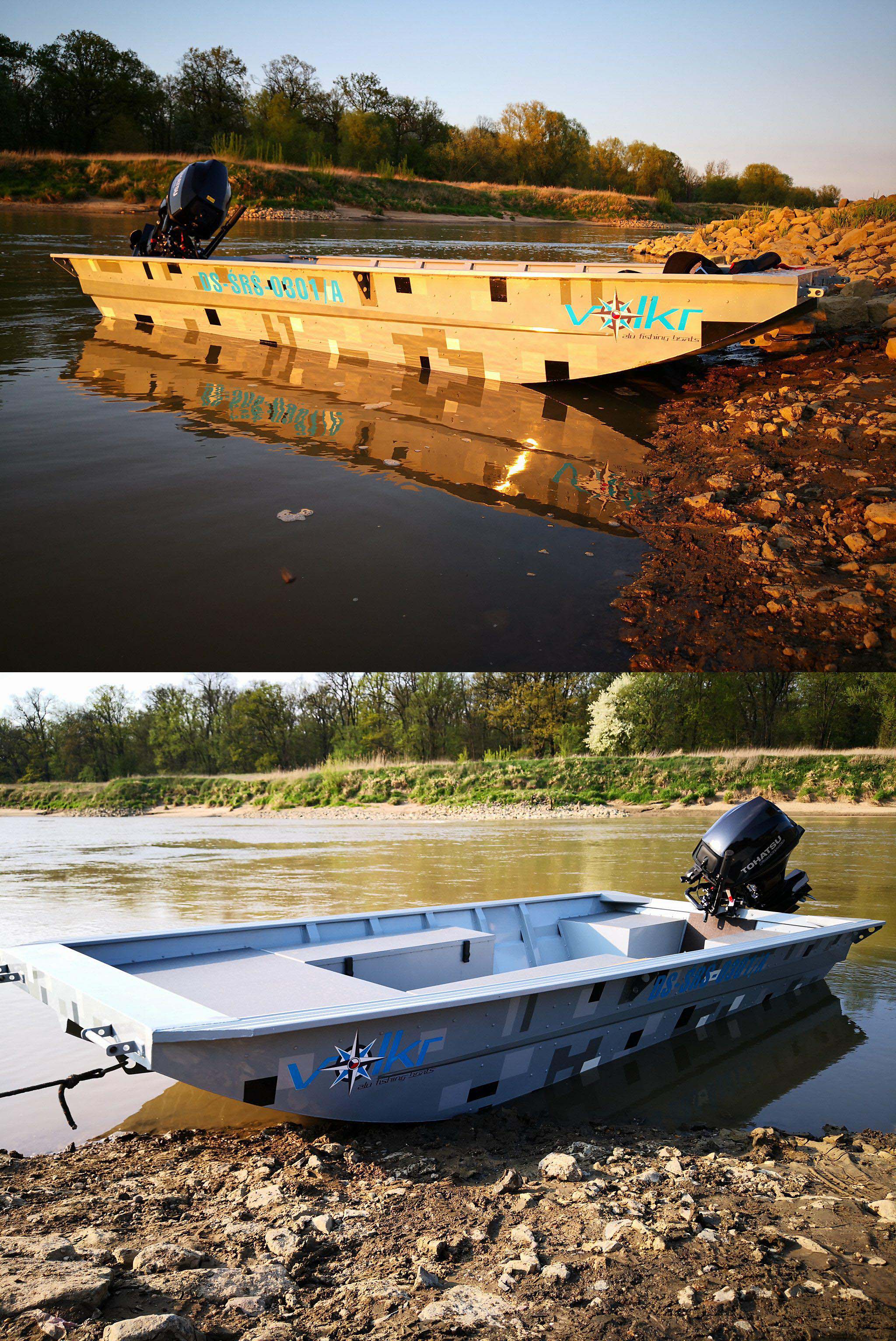

The construction of our boat is a result of years of development. Each specific detail serves its own purpose and differentiates our boat from the competition. The stability is secured by the large surface of the bottom of the ship, which is more than two square metres and shifts the centre of gravity to the "V" shaped keel. The hull is welded, internal braces and benches are riveted. Foam filled rear benches provide an additional lift making our boat more secure and unsinkable, even if it’s full of water. Storage space is located in the front bench. Great manoeuvrability characteristics are provided by a lightweight body, ensuring that our boat is nimble and easy to handle, which will be appreciated by fishermen, boat rentals, rescue services and other common users. The hull of the ship is made from AL MG3 material with a thickness of 1,5 mm. Rear face, reinforcements and benches of 2 mm thickness.

Mail: volkrboat@jm20.cz

Images

Model Frog 360/160 CZ JMF 36

Model Frog 360/160 CZ JMF 36

Lenght 3,6 m / 11,8 feet
Width 1,6 m / 5,25 feet
Rear face height 415 mm / 16,3 inches
Load capacity 395 kg / 870 pounds
Person 3
Engine 10hp
(with reinforcement of the rear face up to 15 hp)
Sailing zone D
Price 1990 €

Model Frog 360/160 CZ JMF 38

Lenght 3,6 m / 11,8 feet
Width 1,6 m / 5,25 feet
Rear face height 425 mm
Load capacity 395 kg / 870 pounds
Weight 90 kg
Person 3
Engine 10hp
(with reinforcement of the rear face up to 15 hp)
Sailing zone D
Price 2600 €

Trailer for model B05 ECO B05/045/17

This trailer is designed for carrying boats with max lenght of 3,6 m / 11,8 feet and weight up to 350 kg / 772 pounds. The trailer has an axle with hubs with waterproof bearings WATER PROOF. The lenght of drawbar is adjustable and can be extended or shortened according to your needs. The towing light board is retractable and removable. Standard accesories are: two anchor points for tie-down straps to secure the boat, winch in the front with cable and and hook, two rollers and two bump stops . The structure is hot dip galvanized. Thanks to simple and robust design it is easy and fast to adjust for your every need.

Width

1700 mm / 67 inches

Max lenght when pulled out

4500 mm / 177 inches

Pull out

1230 mm/ 48,5 inches

Max load capacity

350 kg / 772 pounds

Type of axle

T

Price

770 €

Special model Frog Turtle 360/160 CZ JMF 37

Lenght 3,6 m / 11,8 feet
Width 1,6 m / 5,25 feet
The bow port width 90 cm / 35,5 inches
Rear face height 415 mm / 16,3 inches
Load capacity 395 kg / 870 pounds
Person 3
Engine 10hp
(with reinforcement of the rear face up to 15 hp)
Sailing zone D
Price 3900 €
The construction of our boat is a result of years of development. Each specific detail serves its own purpose and differentiates our boat from the competition. The stability is secured by the large surface of the bottom of the ship, which is more than two square metres and shifts the centre of gravity to the "V" shaped keel. The hull is welded, internal braces and benches are riveted. Foam filled rear benches provide an additional lift making our boat more secure and unsinkable, even if it’s full of water. Storage space is located in the front bench. Great manoeuvrability characteristics are provided by a lightweight body, ensuring that our boat is nimble and easy to handle, which will be appreciated by fishermen, boat rentals, rescue services and other common users. The hull of the ship is made from AL MG3 material with a thickness of 1,5 mm. Rear face, reinforcements and benches of 2 mm thickness.
